Energy efficiency overview

Location:Menu / KPIs / Energy
Scope:Site
Reporting Period:Applicable
License:Only available for OPTIME


The Energy KPIs are divided into 4 tabs:

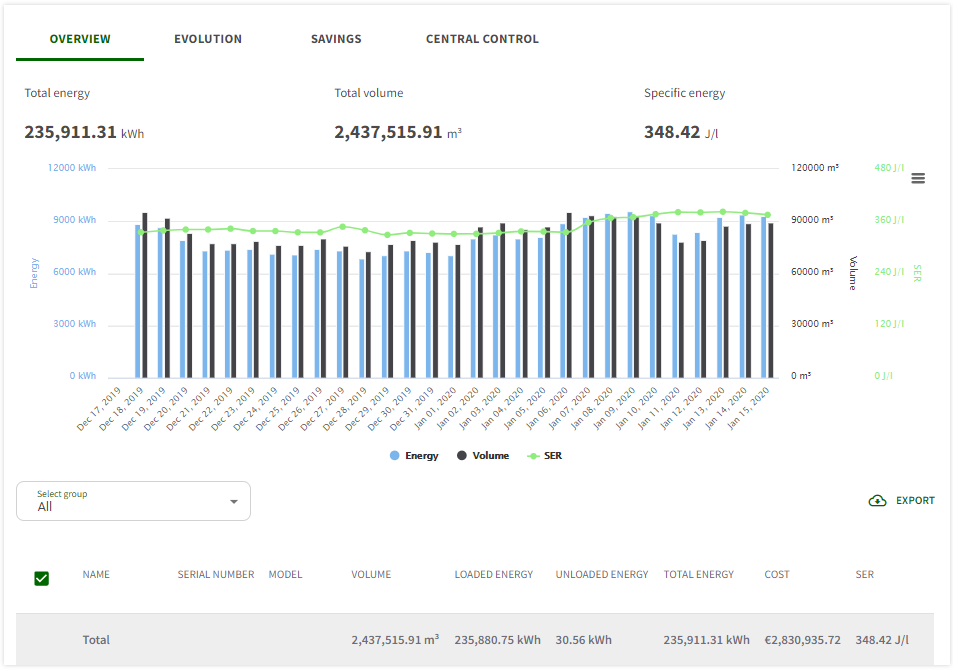

The energy overview indicates your equipment's energy efficiency performance. The main Key Performance Indicators (KPIs) to analyze this are Energy, Volume, and SER.



Energy

This is the amount of energy in kWh consumed within the selected reporting period. (You can change the way you wish to measure energy in your user settings).



Volume

The volume in m³ produced within the selected reporting period.



SER

Specific Energy Requirement (SER) is the total amount of energy relative to the total volume produced in a selected period. In other words, it is the amount of energy that was used to produce the volume of compressed air.



NOTE: You can configure the units (for example, kWh) by changing your user regional settings. This is explained here.

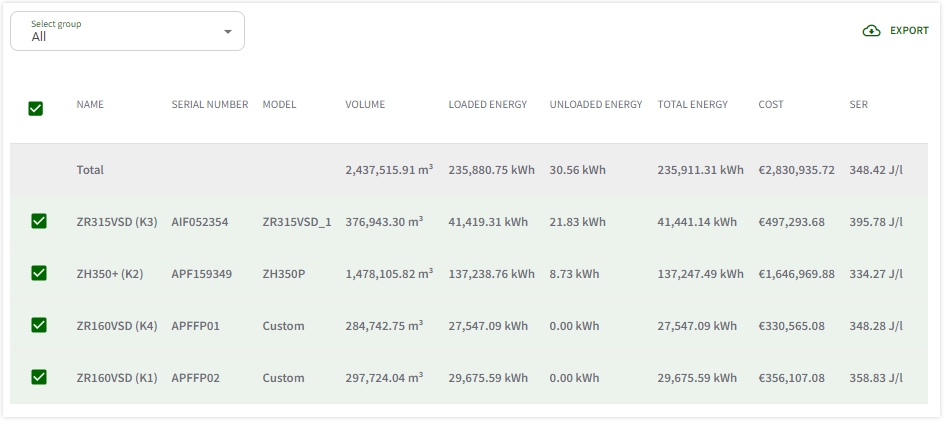

You can find detailed information below the trend graph. Use this grid to select different groups from the dropdown.


NOTE: In order to follow-up on your energy costs, the cost per kWh has to be defined in the company's settings.
