Location: | Menu / KPIs / Energy |
Scope: | Site |
Reporting Period: | Applicable |
License: | Only available for OPTIME |
The Energy KPIs are divided into 4 tabs:
Settings:
First, define the reporting period and the comparison period. The reporting period can be selected from the top bar:
By default, the previous period that is available is selected as a comparison. If you wish to change this, you can do so using the button below SELECT COMPARISON PERIOD:

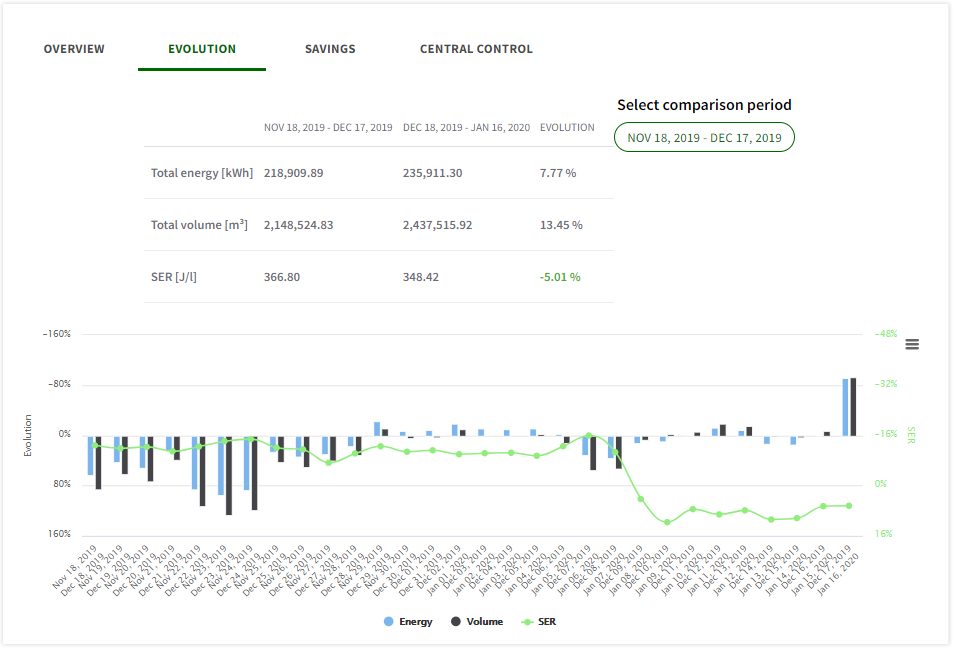

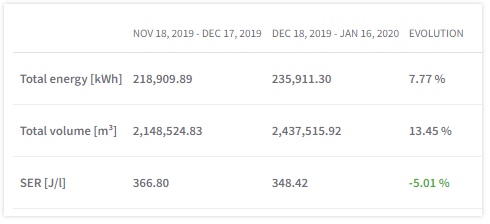

Once this is set up, the overview shows the relevant data in a table and a graph. The table compares the data of the selected periods with respect to energy, volume, and energy efficiency. The trend graph visualizes the evolution of this performance.

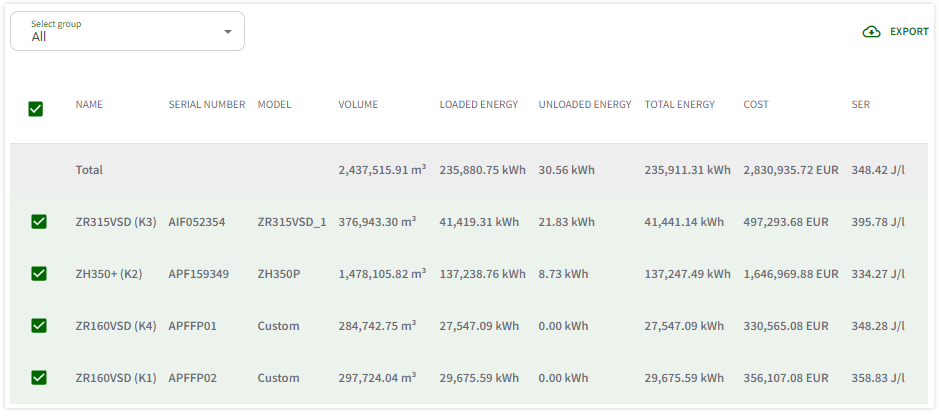

Located at the bottom of the screen, the machine data table shows you the detailed information about the Energy evolution of each machine. This information is the same as shown in the Energy overview.
You can find detailed information below the trend graph. Use this grid to select different groups from the dropdown.
NOTE: In order to follow-up on your energy costs, the cost per kWh has to be defined in the company's settings.
