Central control overview (energy)

Modified on: Thu, 16 Jan, 2020 at 1:57 PM

Location:	Menu / KPIs / Energy
Scope:	Site
Reporting Period:	Applicable
License:	Only available for OPTIME

The Energy KPIs are divided into 4 tabs:

Overview
Evolution
Savings
Central Control

NOTE: This feature is only available for installations where an Energy Saver/Optimizer 4.0 is available

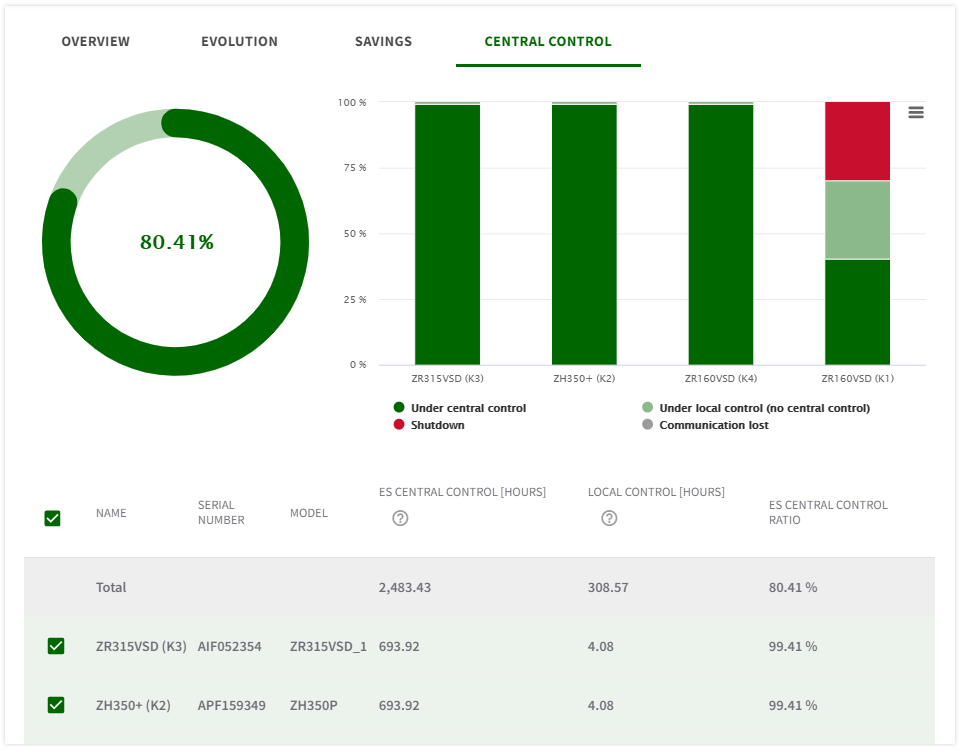

This overview indicates the central control ratio, which is calculated as follows: (hours under ES control/ (hours under ES control + hours NOT under ES control and available) * 100%. Four states are taken into account for this ratio:

Under central control
Under local control (no central control)
Shutdown
Communication error

The overview allows you to select specific machines from the machine list, located at the bottom. All the changes are visualized in the top graphs.
